Traefik Proxy Admin#

Traefik Proxy Admin (TPA) is an optional DUMB service for managing user-facing reverse proxy routes through the Traefik instance bundled with DUMB. Use it when you want DUMB to keep handling embedded service UIs, while TPA manages public or LAN hostnames for services inside or outside the DUMB container.

What TPA adds#

TPA provides:

• User-managed reverse proxy routes - Create domains, services, middleware choices, and auth rules from a web UI.
• Built-in Traefik integration - DUMB enables Traefik and points Traefik's HTTP provider at TPA's generated config endpoint.
• Persistent storage - TPA uses DUMB PostgreSQL database traefik_proxy_admin.
• Admin authentication - TPA defaults to local admin auth and generates a persistent ADMIN_AUTH_SECRET on first setup.
• External-service support - Routes can target services outside the DUMB container when the target host is reachable from the DUMB container.
• Target reachability tests - TPA can test TCP connectivity to allowed private ranges before you save a service.

Default port#

How DUMB wires TPA to Traefik#

DUMB keeps two Traefik configuration lanes separate:

When traefik_proxy_admin.enabled=true, DUMB also enables PostgreSQL and Traefik, ensures the traefik_proxy_admin database exists, waits for PostgreSQL before starting TPA, then starts Traefik after the TPA provider endpoint is returning valid config.

providers:
  file:
    directory: /config/traefik/dynamic
    watch: true
  http:
    endpoint: http://127.0.0.1:3004/api/traefik/config
    pollInterval: 10s

This lets DUMB regenerate embedded UI routes without overwriting TPA-managed external routes.

Step 1: Enable TPA in DUMB#

1. Open the Traefik Proxy Admin service page in DUMB.
2. Enable the service.
3. Start the service.
4. Let DUMB start or prepare PostgreSQL and Traefik automatically.
5. Open TPA from the DUMB service page, the embedded UI tab, or http://<host>:3004.

On first start, DUMB also writes runtime values that TPA needs, including the database URL, admin auth secret, admin cookie mode, Traefik API URL, access log path, and target-test allowlist.

Step 2: Create the first admin account#

The first TPA screen asks you to create a local admin account.

1. Enter an admin username.
2. Enter a strong password.
3. Confirm the password.
4. Select Create admin account.

After this, TPA admin auth protects the TPA UI and API.

Admin cookie security#

DUMB runs TPA with ADMIN_COOKIE_SECURE=false by default. This allows local admin login to work when you open TPA over plain HTTP on a LAN address, such as http://<host>:3004. Without this, browsers can store the secure admin session cookie but refuse to send it back over HTTP, which looks like a successful login that immediately returns to the login page.

If you expose TPA only through HTTPS and do not need direct HTTP LAN access, you can set:

ADMIN_COOKIE_SECURE=true

Then restart TPA. For public deployments, HTTPS plus secure cookies is preferred. Keep ADMIN_COOKIE_SECURE=false only when you intentionally need local HTTP access.

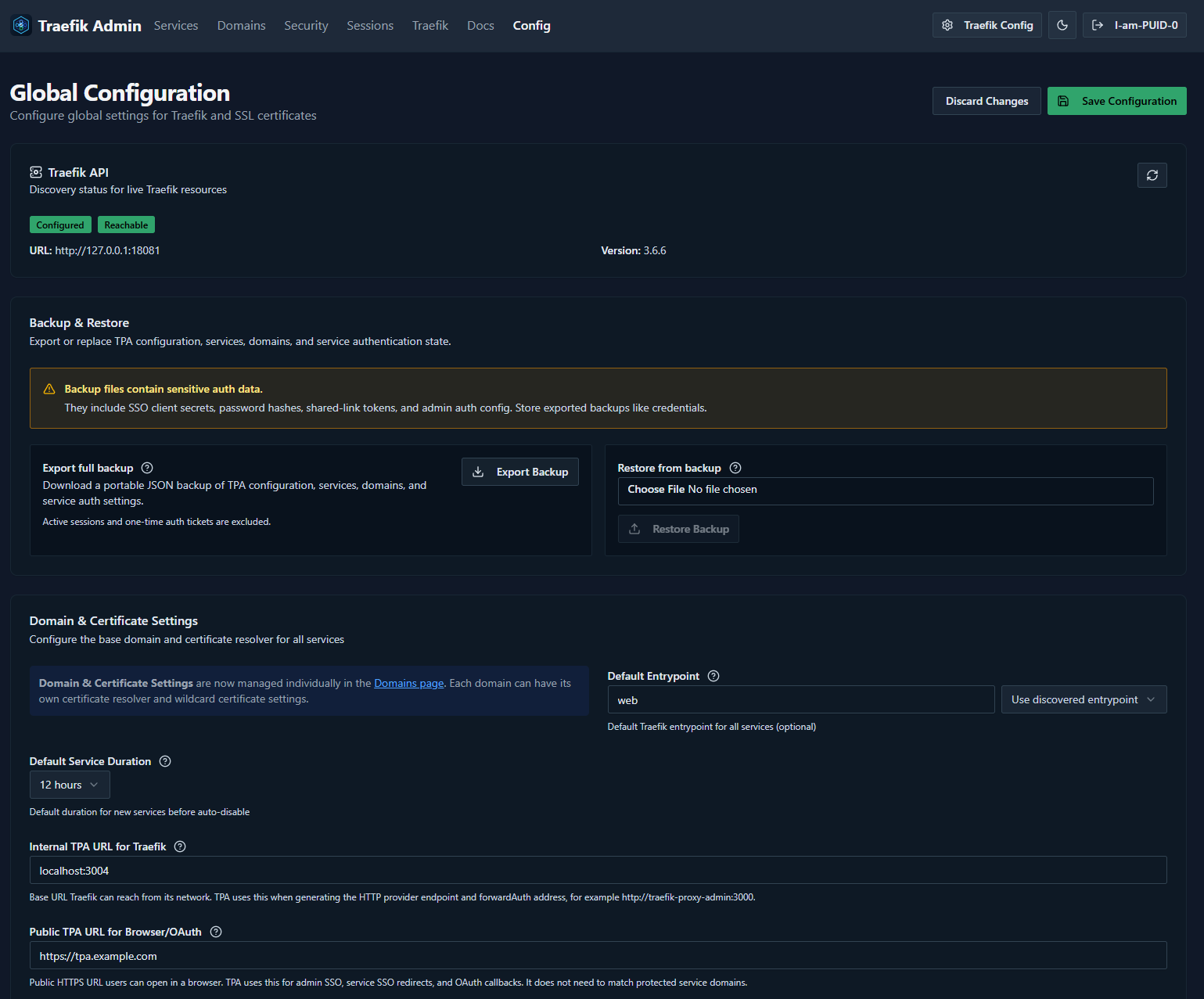

Step 3: Review global configuration#

Open Config in TPA.

Check these fields first:

Select Save Configuration after changes.

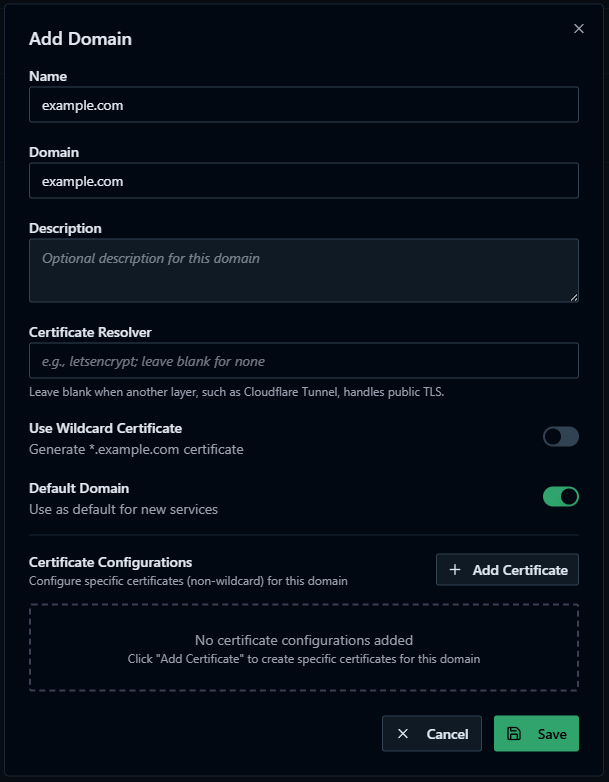

Step 4: Add a domain#

Domains are the base hostnames TPA uses when building service routes.

1. Open Domains.
2. Select Add Domain.
3. Enter the base domain you control.
4. For Certificate Resolver, leave the field blank when Cloudflare Tunnel handles public TLS. Enter your Traefik ACME resolver name only if Traefik itself should issue certificates.
5. Choose whether this domain should be the default.
6. Save the domain.

For Cloudflare Tunnel, make sure Cloudflare DNS and the tunnel route also point matching hostnames at DUMB Traefik. The tunnel terminates public TLS at Cloudflare, then connects to DUMB Traefik. See the Cloudflared guided setup.

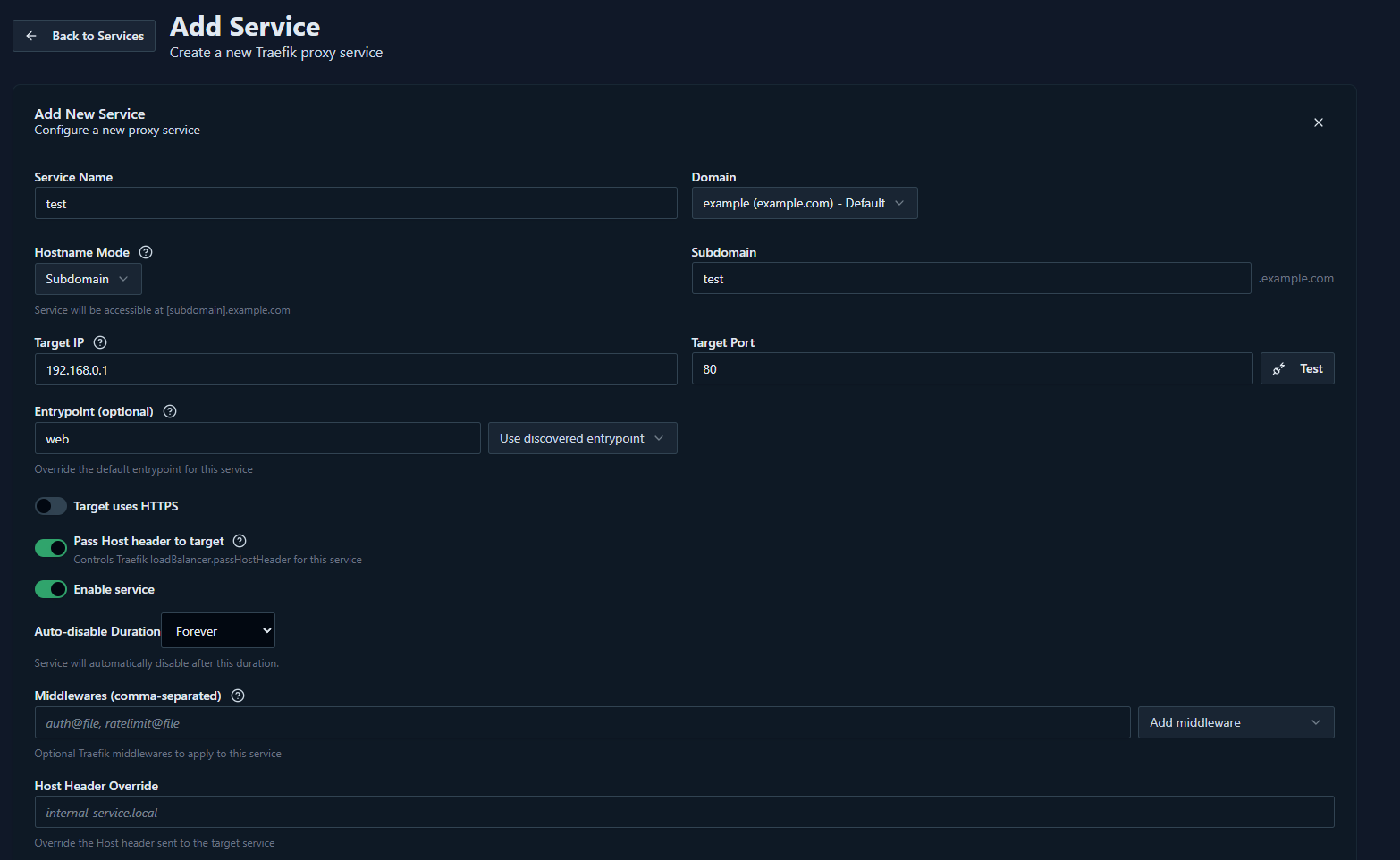

Step 5: Add your first service route#

Open Services, then select Add Service.

Recommended first test target:

• Use a low-risk internal test app or temporary service.
• Avoid testing first with DUMB, TPA, or another admin surface unless auth is already configured.
• Confirm the target is reachable from inside the DUMB container, not just from your browser.

Fill in the route:

Select Test beside the target fields before saving.

Target reachability allowlist#

TPA target testing is intentionally restricted. By default DUMB sets:

TARGET_TEST_ALLOW_CIDRS=10.0.0.0/16,172.20.0.0/16,192.168.0.0/16,127.0.0.0/8

This allows target tests for common private/container networks:

If your targets live on another private subnet, add that CIDR to traefik_proxy_admin.env.TARGET_TEST_ALLOW_CIDRS in DUMB config, then restart TPA.

Step 6: Add protection before publishing sensitive apps#

TPA can publish a route, but publishing is not the same as protecting it.

Before exposing sensitive services, configure at least one protection layer:

• TPA service SSO.
• TPA Basic Auth middleware.
• TPA Shared Link for temporary or limited access.
• Cloudflare Access in front of the hostname.
• The upstream application's own login, if it is strong enough for the exposure model.

Use stronger protection for admin tools, download clients, dashboards, and anything that can modify your stack.

Example: Basic Auth#

Basic Auth is a simple first protection layer for low-risk routes and smoke tests. It is not a replacement for a strong app login or SSO on highly sensitive admin tools, but it is useful when you need a quick gate before a service is reachable.

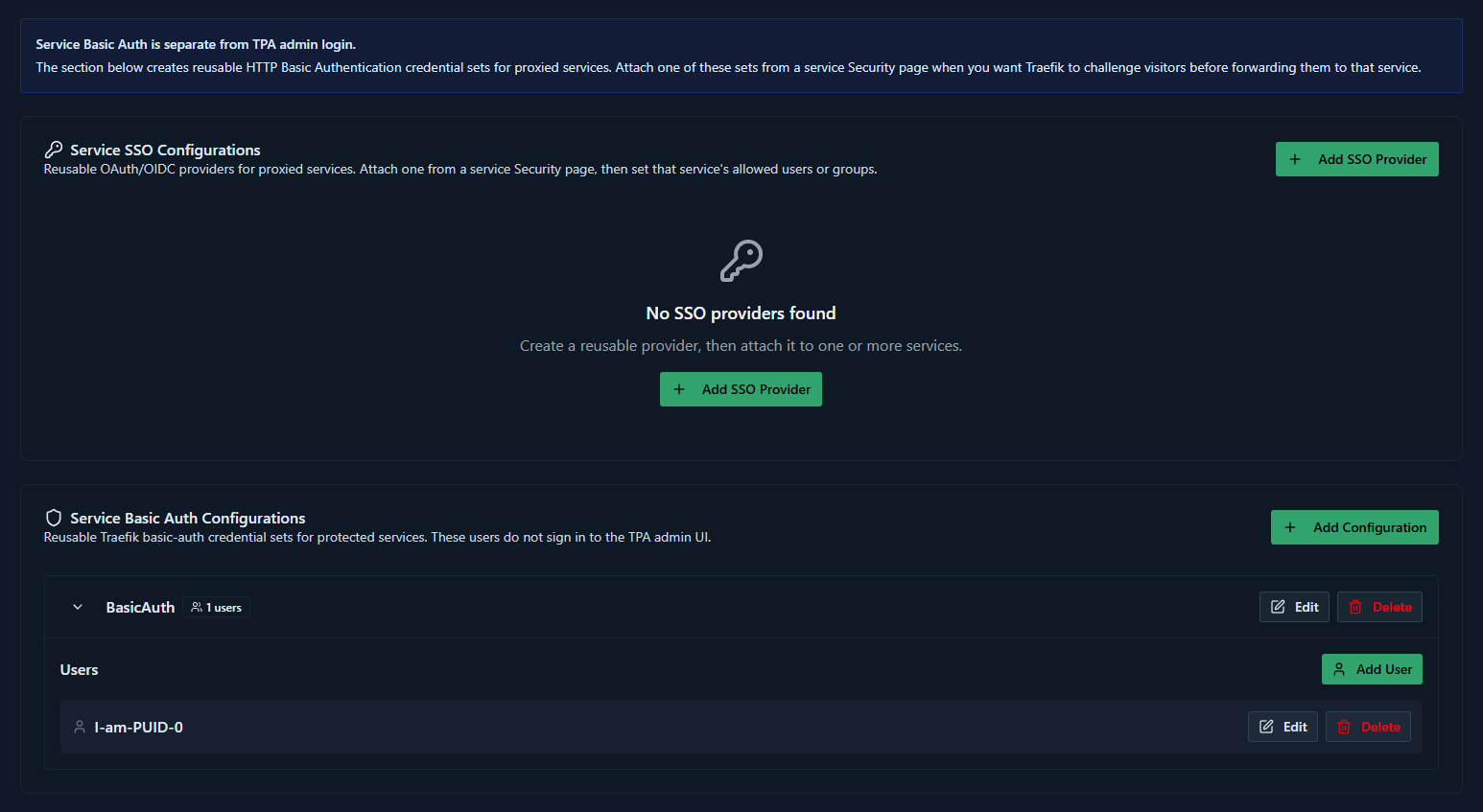

First create a reusable Basic Auth configuration from Security.

1. Open Security.
2. Add a Service Basic Auth Configuration.
3. Give it a clear name.
4. Add one or more username/password entries.
5. Save the configuration.

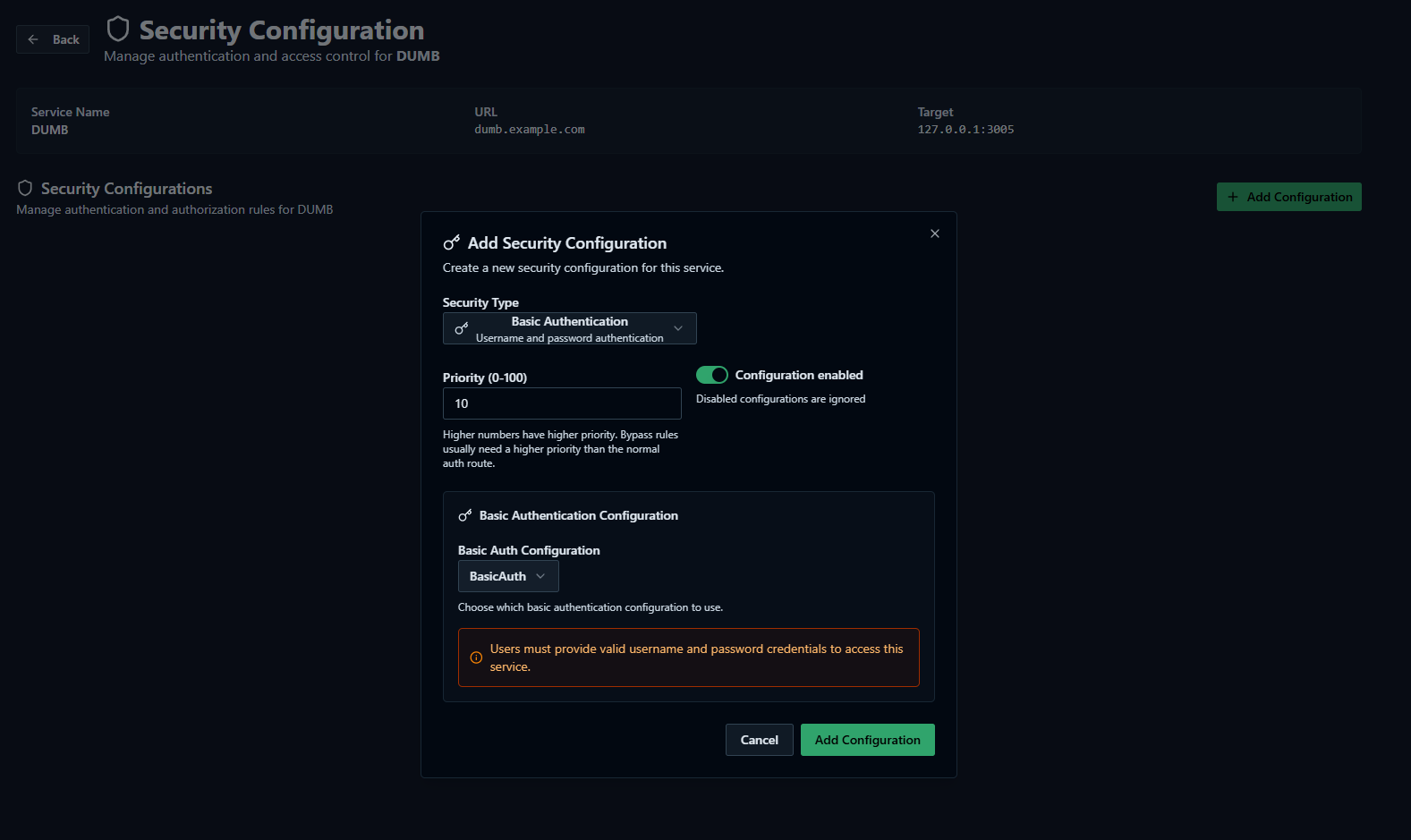

Then attach that Basic Auth configuration to the service route.

1. Open the service route.
2. Open the service's Security settings.
3. Enable Basic Auth for that service.
4. Select the reusable Basic Auth configuration.
5. Save the service security settings.

Step 7: Save and validate the route#

1. Save the service.
2. Open the service hostname in a private browser window.
3. Check TPA service status.
4. Check DUMB Traefik access logs if the route does not match.
5. Check the upstream target logs if Traefik reaches the service but the app fails.

A successful route means:

• DNS or tunnel routing reaches DUMB Traefik.
• TPA generated a matching Traefik router.
• Traefik can reach the target IP and port.
• Any auth middleware behaves as expected.

Cloudflare Tunnel handoff#

If publishing through Cloudflare Tunnel:

1. Create the TPA service route in TPA.
2. Create a matching Cloudflare Tunnel published application route.
3. Point the tunnel service URL at https://localhost:18080.
4. In Zero Trust, enable No TLS Verify for that origin.
5. Keep service auth enabled in TPA, Cloudflare Access, or the upstream app.

Full steps are in the Cloudflared guide.

Configuration settings in dumb_config.json#

"traefik_proxy_admin": {
  "enabled": false,
  "process_name": "Traefik Proxy Admin",
  "repo_owner": "I-am-PUID-0",
  "repo_name": "traefik-proxy-admin",
  "release_version_enabled": false,
  "release_version": "latest",
  "branch_enabled": false,
  "branch": "main",
  "suppress_logging": false,
  "log_level": "INFO",
  "port": 3004,
  "auto_update": false,
  "auto_update_interval": 24,
  "auto_update_start_time": "04:00",
  "clear_on_update": true,
  "platforms": ["pnpm"],
  "config_dir": "/traefik-proxy-admin",
  "log_file": "/log/traefik_proxy_admin.log",
  "env": {
    "NODE_ENV": "production",
    "PORT": "3004",
    "HOSTNAME": "0.0.0.0",
    "ADMIN_AUTH_ENABLED": "true",
    "ADMIN_AUTH_PROVIDER": "local",
    "ADMIN_COOKIE_SECURE": "false",
    "TRAEFIK_API_URL": "http://127.0.0.1:18081",
    "TRAEFIK_ACCESS_LOG_PATH": "/log/traefik_access.log",
    "TARGET_TEST_ALLOW_CIDRS": "10.0.0.0/16,172.20.0.0/16,192.168.0.0/16,127.0.0.0/8",
    "NEXT_TELEMETRY_DISABLED": "1"
  }
}

Configuration key descriptions#

• enabled: Whether to install and start TPA.
• port: TPA web UI port.
• platforms: Uses DUMB's pnpm setup path.
• config_dir: TPA source and build directory.
• env.DATABASE_URL: Generated automatically when missing, targeting DUMB PostgreSQL database traefik_proxy_admin.
• env.ADMIN_AUTH_SECRET: Generated automatically on first setup and persisted in runtime config.
• env.ADMIN_COOKIE_SECURE: Defaults to false in DUMB so local HTTP admin login works. Set to true when TPA is only accessed through HTTPS.
• env.TRAEFIK_API_URL: Internal URL for TPA to inspect DUMB Traefik's live API.
• env.TRAEFIK_ACCESS_LOG_PATH: DUMB Traefik access log path for TPA diagnostics.
• env.TARGET_TEST_ALLOW_CIDRS: Private CIDR allowlist used by TPA target reachability tests.
