Embedded Service UIs#

DUMB can proxy service web interfaces through Traefik, allowing you to access all service UIs from a single entry point without exposing individual ports.

Overview#

The embedded UI feature provides:

• Unified access - All service UIs available through one port
• Simplified networking - No need to expose multiple ports
• Integrated experience - Access services without leaving DUMB
• Traefik routing - Dynamic path-based routing to services
• Root-app handling - Services such as AltMount, Pulsarr, Traefik Proxy Admin, and Traefik Dashboard can load root-relative assets and APIs while staying inside the embedded service context

How it works#

%%{ init: { "flowchart": { "curve": "basis" } } }%%
flowchart TD
    A([Browser])
    B[[Traefik :18080]]
    C{Path router}
    D[Riven :3000]
    E[pgAdmin :5050]
    F[Seerr :5055]
    G[Radarr :7878]

    A ==> B
    B ==> C
    C -- /service/ui/riven --> D
    C -- /service/ui/pgadmin --> E
    C -- /service/ui/seerr --> F
    C -- /service/ui/radarr --> G

1. Request arrives at Traefik on port 18080
2. Path matching routes to the appropriate service
3. Middleware strips the prefix and adjusts headers
4. Service responds through the proxy

Enabling embedded UIs#

During onboarding#

The onboarding wizard asks if you want to enable embedded service UIs. Select Yes to configure Traefik routing automatically.

Via settings#

1. Navigate to Settings
2. Find the Embedded UIs section
3. Toggle Enable Service UIs

Via API#

curl -X POST http://localhost:8000/api/config/service-ui \
  -H "Content-Type: application/json" \
  -d '{"enabled": true}'

Accessing embedded UIs#

When enabled, service UIs are available at:

http://<host>:18080/service/ui/<service_name>

The DUMB frontend also proxies UI requests through a /ui/<service_name> path for iframes and split view. Direct browser navigation to /ui/<service_name> is blocked by the frontend proxy; use the service page or the direct-link button instead.

Some embedded services are root-style web apps. Their JavaScript may call paths such as /api/*, /_next/*, /dashboard, or /auth/login instead of paths under the service prefix. The dmbdb proxy uses iframe context, referer, and the dumb_ui_service cookie to route those requests back to the active service instead of sending them to DUMB's own API.

Available services#

Traefik configuration#

DUMB automatically generates Traefik embedded-UI routing configuration in /config/traefik/dynamic/services.yaml. Traefik watches /config/traefik/dynamic for DUMB-owned dynamic files and can also poll Traefik Proxy Admin through its HTTP provider when that optional service is enabled.

Example configuration#

http:
  routers:
    riven_frontend:
      rule: "PathPrefix(`/service/ui/riven_frontend`)"
      service: riven_frontend
      middlewares:
        - riven_frontend-stripprefix
        - riven_frontend-replace
        - ui_frame_headers

  middlewares:
    riven_frontend-stripprefix:
      stripPrefix:
        prefixes:
          - "/service/ui/riven_frontend"

    riven_frontend-replace:
      replacePathRegex:
        regex: "^/$"
        replacement: "/web/index.html"

    ui_frame_headers:
      headers:
        customFrameOptionsValue: "SAMEORIGIN"
        contentSecurityPolicy: "frame-ancestors 'self'"

  services:
    riven_frontend:
      loadBalancer:
        servers:
          - url: "http://127.0.0.1:3000"

Middleware chain#

Each service uses a middleware chain:

1. stripPrefix - Removes /service/ui/<name> from the path
2. replacePathRegex - Rewrites root path to service entry point
3. ui_frame_headers - Adds headers for iframe embedding

iframe embedding#

The DUMB frontend can display service UIs in iframes for a seamless experience:

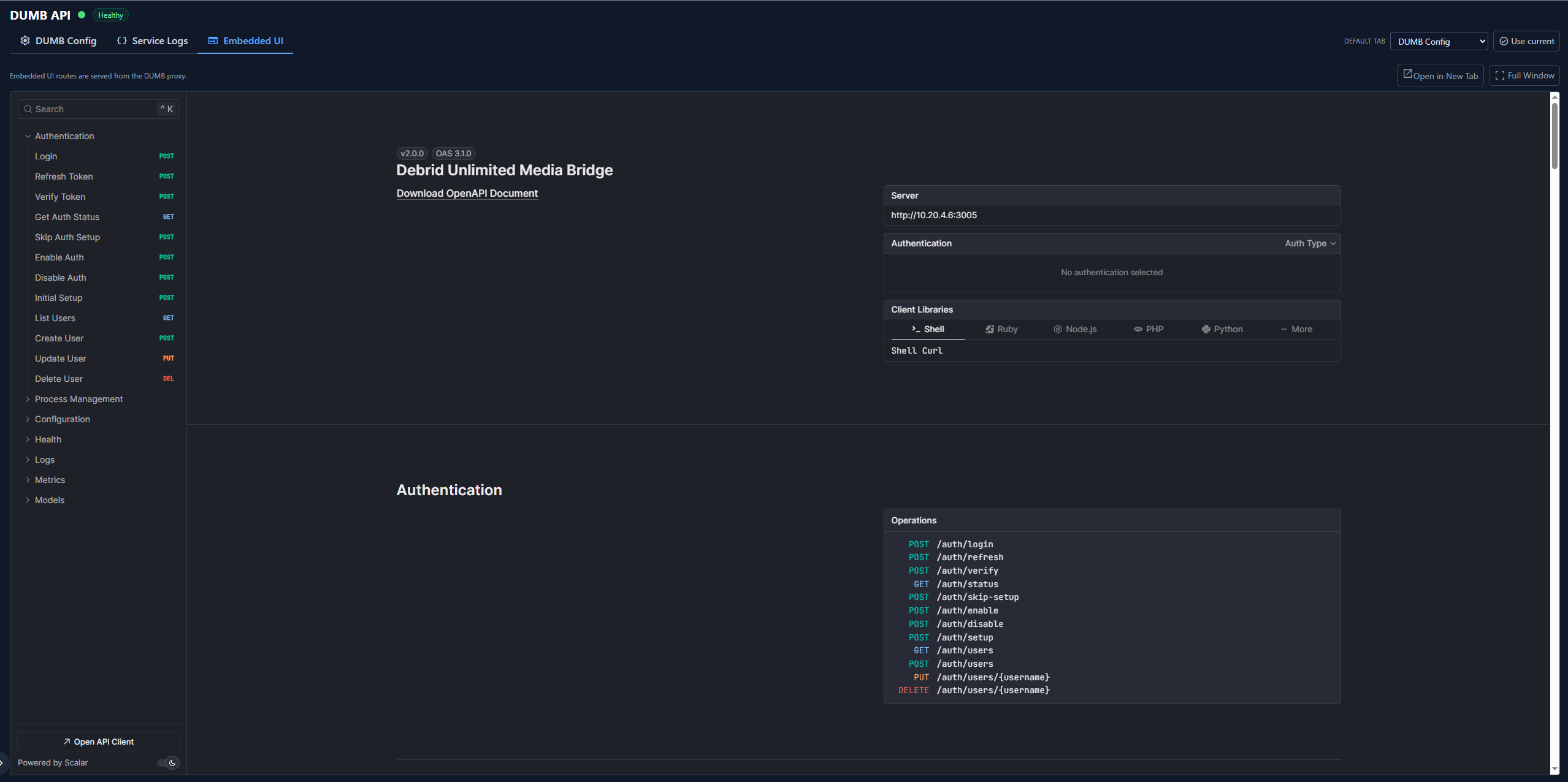

Embedded UI tab#

Each service page includes an embedded UI tab when the service exposes a UI. From there you can:

• Switch between available UI base paths when the service exposes multiple entry points
• Open the UI in a new browser tab using the proxied direct link
• Expand the UI into a full-window view without leaving the service page

Split view mode#

1. Open a service from the dashboard
2. Click the split view button
3. The service UI loads in a side panel

Full iframe mode#

Some pages display the service UI in a full iframe, maintaining DUMB navigation while showing the service interface.

Security considerations#

Same-origin policy#

Embedded UIs are served from the same origin (Traefik port), avoiding cross-origin restrictions.

Frame headers#

The ui_frame_headers middleware sets:

• X-Frame-Options: SAMEORIGIN - Only allow framing from same origin
• Content-Security-Policy: frame-ancestors 'self' - Modern browsers CSP

Authentication passthrough#

When DUMB authentication is enabled:

• The DUMB frontend handles auth
• Service UIs may have their own auth (e.g., Plex, pgAdmin)
• Traefik does not add authentication to proxied services

Troubleshooting#

Service UI not loading#

1. Verify the service is running
2. Check the service appears in /api/config/service-ui
3. Verify Traefik configuration in /config/traefik/dynamic/services.yaml
4. Check Traefik logs for routing errors

"Refused to display in frame" error#

• Ensure ui_frame_headers middleware is applied
• Some services have their own frame protection - check service settings
• Try accessing the service directly to verify it works

404 errors on service paths#

• Verify the service name matches the configuration
• Check if the path prefix is correct
• Ensure Traefik has reloaded the configuration
• For root-style apps, reload from the service page so the frontend can refresh the active embedded UI context cookie

Slow loading#

• Services load their full UI through the proxy
• Initial load may be slower than direct access
• Consider the service's native performance

Proxy behavior and restrictions#

The frontend proxy enforces iframe-only access to /ui/<service> routes. If you try to visit those paths directly, the proxy redirects you back to the main app. This keeps service UI cookies scoped to the embedded context and prevents navigation loops.

Use one of these paths instead:

• The embedded UI tab on the service page
• The direct link button (opens a new tab safely through the proxy)
• The Traefik route (/service/ui/<service>) if you want to bypass the frontend

Disabling embedded UIs#

To disable and revert to direct port access:

1. Go to Settings Embedded UIs
2. Toggle Disable Service UIs
3. Access services on their native ports

Or via API:

curl -X POST http://localhost:8000/api/config/service-ui \
  -H "Content-Type: application/json" \
  -d '{"enabled": false}'
